》FUNCTION INTRODUCTION

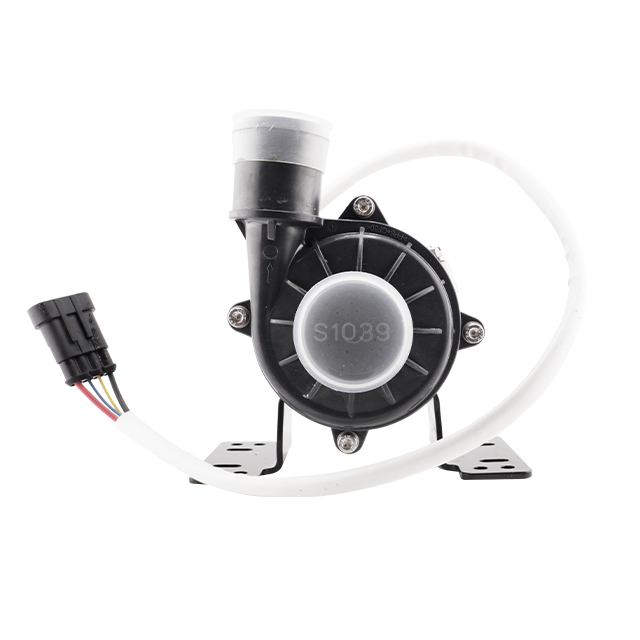

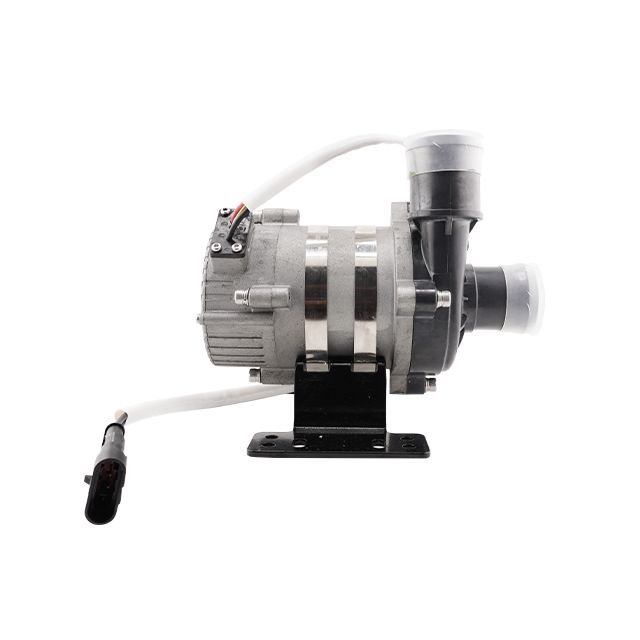

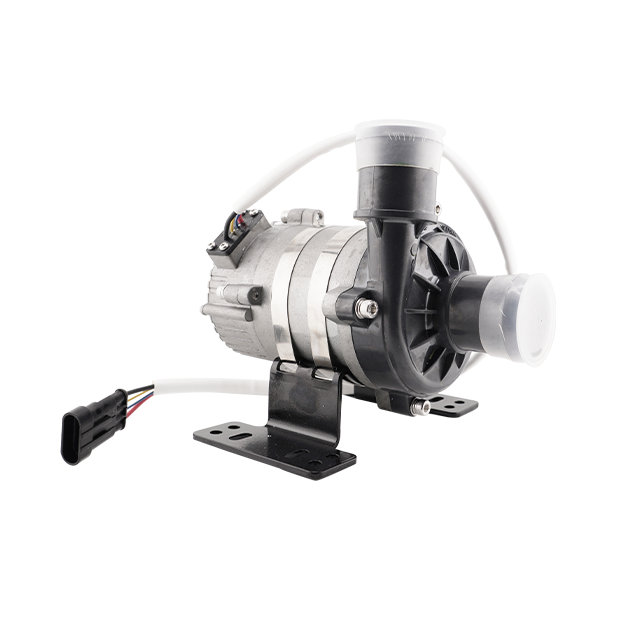

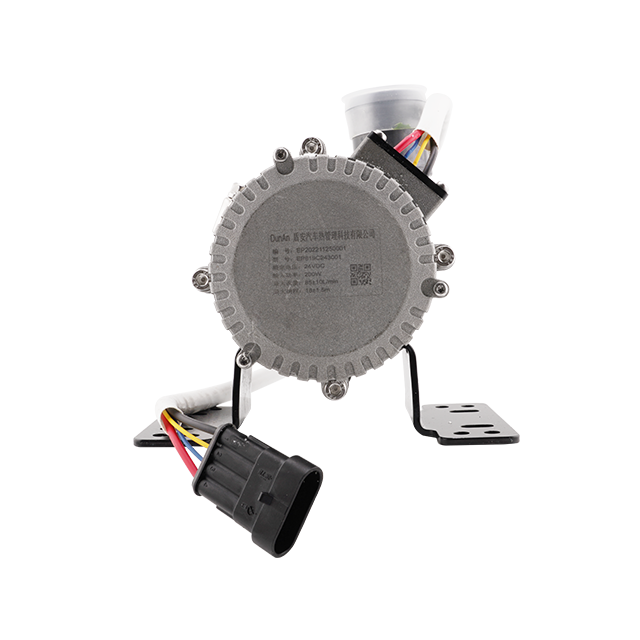

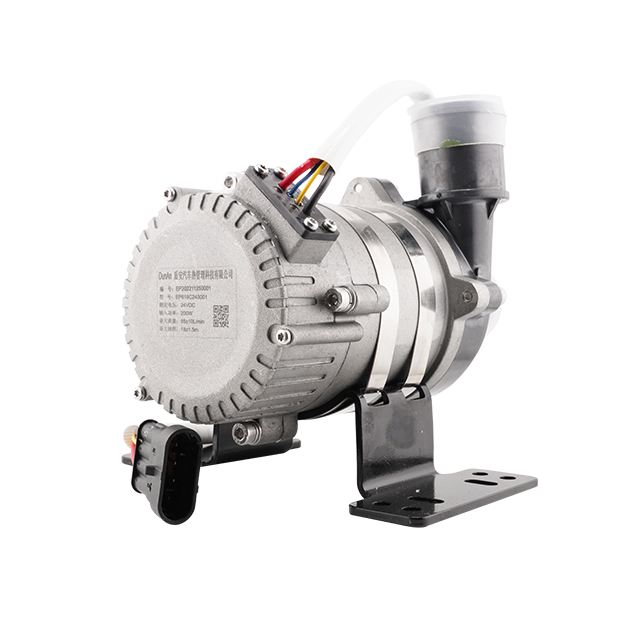

◆EP series electronic water pumps are suitable for automotive thermal management systems and can be used for
cooling of conventional automotive engines ,turbochargers, etc., cooling of new energy automotive batteries, motors, and electronic controls. Its function is to increase the working pressure of the liquid medium, overcome the resistance of the system, promote the continuous circulation of the medium, and adjust the flow according to the system requirements to meet the real-time cooling requirements of the system
》FUNCTION INTRODUCTION
◆ Wear-resistant material application,anti-dry operation,long service life;
◆ Precision machining,low noise,high reliability;
◆ Anti-interference design to meet the entire vehicle EMC requirements;
◆ Hydraulic structure optimization design,energy saving,high efficiency.
》TECHNICAL PARAMETERS
| Item | Parameters |
| Using media | antifreeze |
Applicable ambient temperature | -40℃～+125℃ |
| Suitable medium temperature | -40℃～+100℃ |
| Applicable environment relative humidity | ≤95%RH |
| Protection level | IP67 |
| Insulation class | F |
| Life Cycle | ≥30000 hour |
| Rated voltage | DC12V/DC24V |
| Communication method | PWM/LIN |
》TECHNICAL PARAMETERS
Model Nrmher | Rated power (W) | Rated voltage (V) | Rated curent (A) | Operating voltage rarige(V) | Maximum litt(m) | Maximum flow(L/min) | Naise(dB) |
| EP50 | 17 | 12 | 1.4 | 6-14 | 2.5 | 25 | ≤40 |
| EP60 | 37 55 | 12 12 | 3 4.5 | 9-16 9-16 | 7 8 | 30 35 | ≤40 ≤40 |

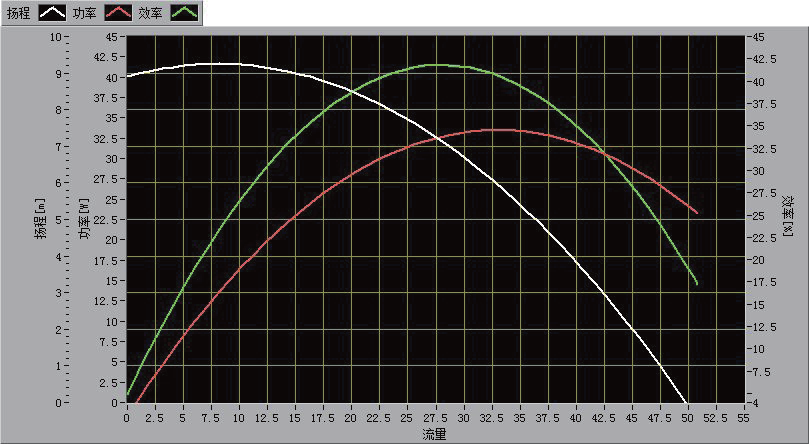

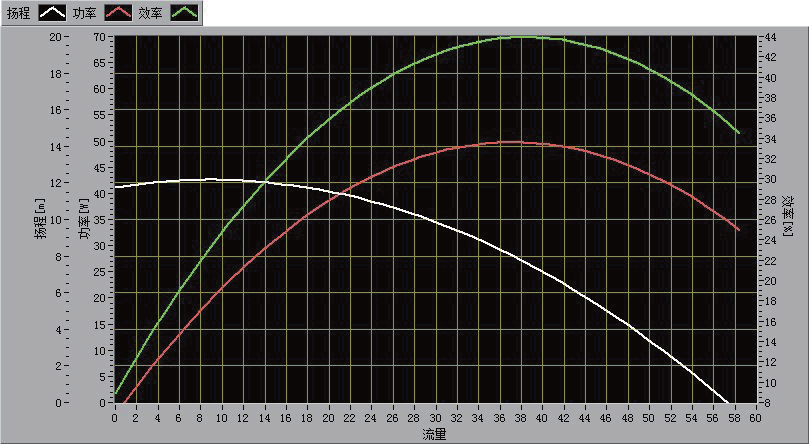

| EP70 | 80 120 | 12 24 | 6.6 5 | 9-16 18-32 | 10 13 | 50 55 | ≤50 ≤55 |
