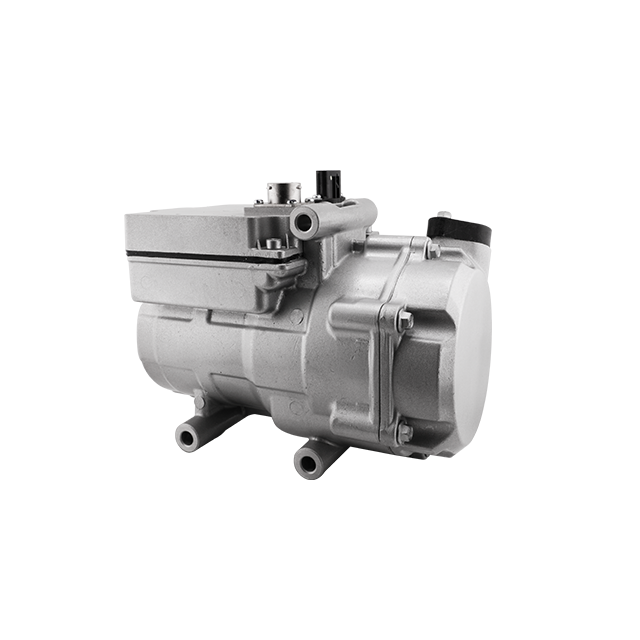

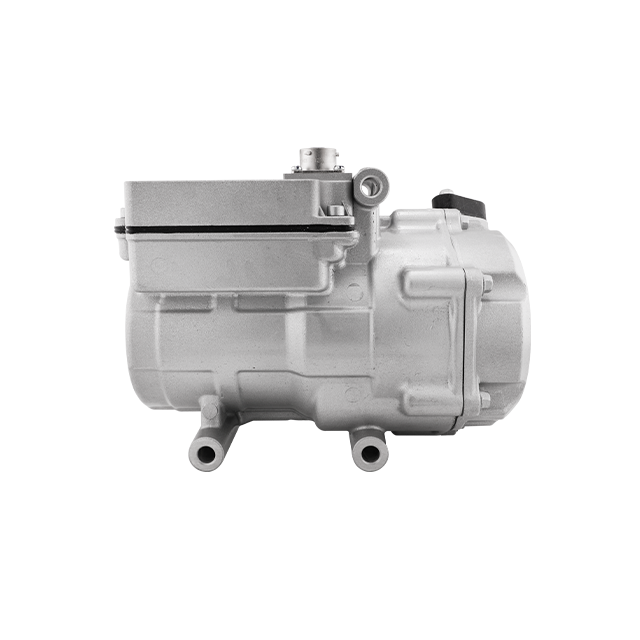

WS66B

Availability:

Quantity:



Inquire Add to Basket

Product Description

Model	WS66B Series electric compressors
Displacement	66ml/r
Range of Voltage	DC 380V			DC 600V
Refrigerant	HFC 134a	HFC 134a	HFC 134a	HFC 134a	HFC 134a	HFC 134a
Oil	POE 68	POE 68	POE 68	POE 68	POE 68	POE 68
Charge Amount	160ml	160ml	160ml	160ml	160ml	160ml
Range of Roation	3000-5000rpm	3000-5000rpm	3000-5000rpm	3000-5000rpm	3000-5000rpm	3000-5000rpm
Speed Range	PWM/CAN/LIN	PWM/CAN/LIN	PWM/CAN/LIN	PWM/CAN/LIN	PWM/CAN/LIN	PWM/CAN/LIN
Rated Cooling Capacity	5600W（3000rpm）	7690W（4000rpm）	9400W（5000rpm）	5600W（3000rpm）	7690W（4000rpm）	9400W（5000rpm）
Rated Power Consumpiton	2730W（3000rpm）	2990W（4000rpm）	4272W（5000rpm）	2730W（3000rpm）	2990W（4000rpm）	4272W（5000rpm）
COP	2.05	2.3	2.2	2.05	2.3	2.2
Maximum Current	20A	20A	20A	15A	15A	15A
Weight	9.0KG	9.0KG	9.0KG	9.0KG	9.0KG	9.0KG
Test conditions: suction pressure 0.3MPa (A)/exhaust pressure 1.5MPa (A)/superheat degree 10 ℃/subcooling degree 5 ℃

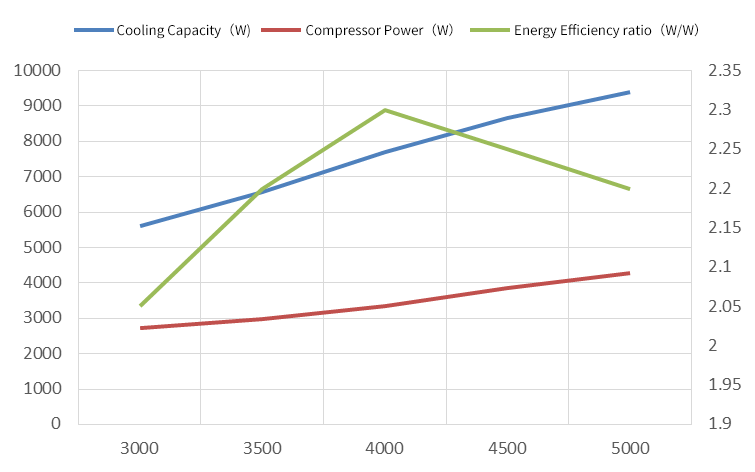

WS66B压缩机行标工况性能曲线图

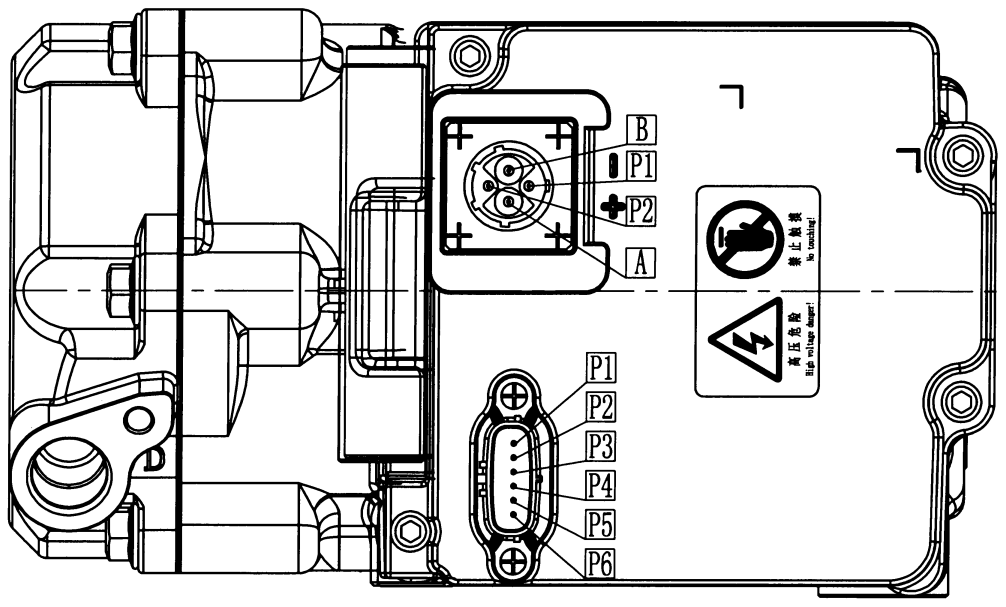

WS34A360-03（1）

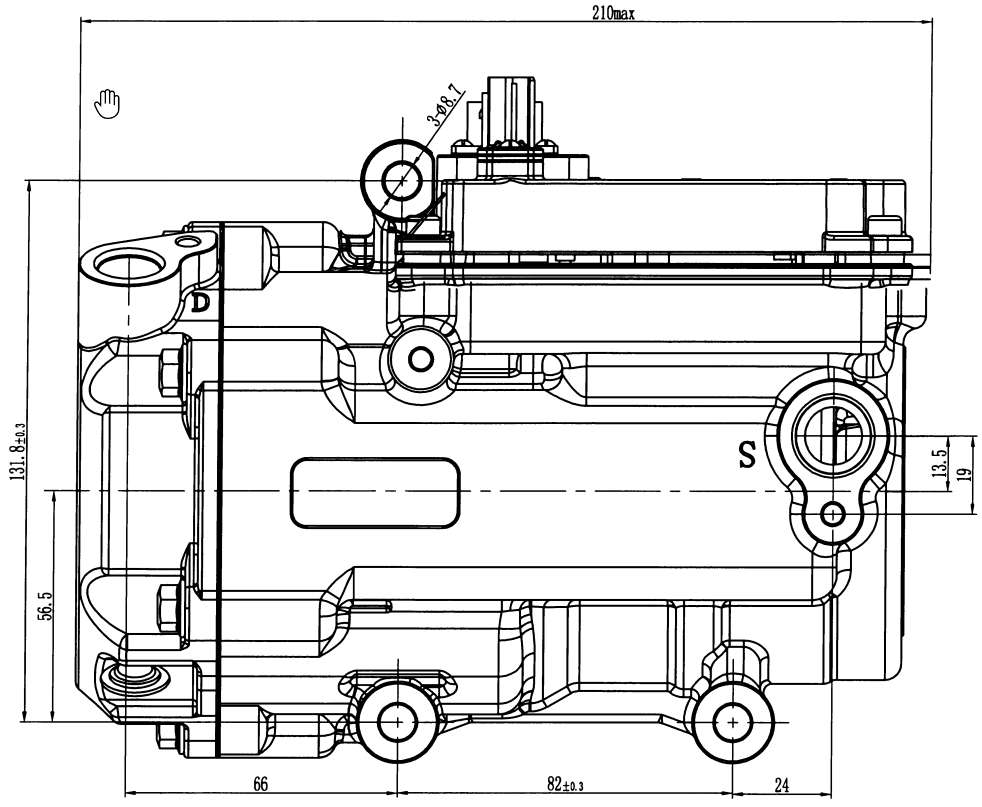

WS34A360-03（2）

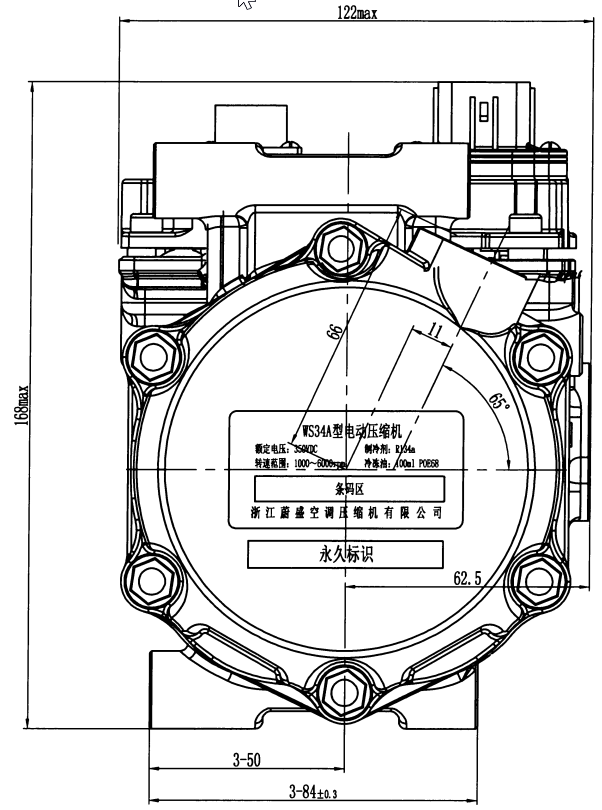

WS34A360-03（3）

EP Series Electronic Water Pumps 2

EP Series Electronic Water Pumps 1

EP Series Electronic Water Pumps 3

Our product adapts to almost every voltage platforms and all requirements for cooling capacity requirements of the current market.
