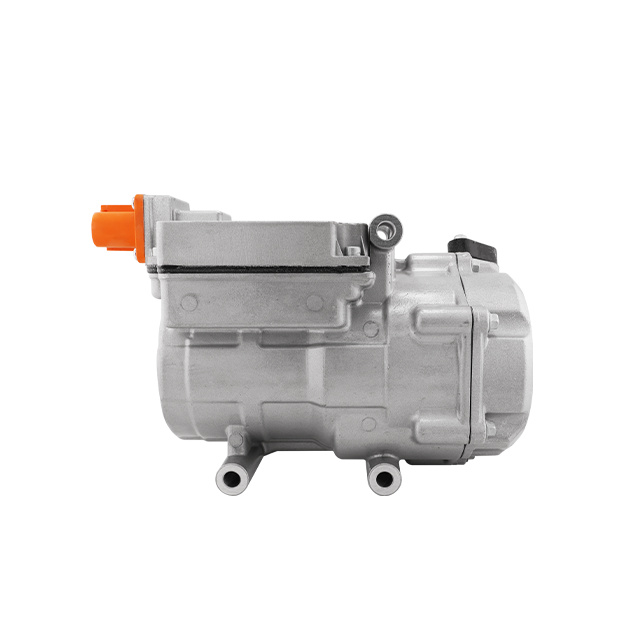

WS34A

Availability:

Quantity:



Inquire Add to Basket

Product Description

Model	WS34A Series electric compressors
Displacement	34ml/r
Range of Voltage	DC 380V			DC 600V
Refrigerant	HFC 134a	HFC 134a	HFC 134a	HFC 134a	HFC 134a	HFC 134a
Oil	POE 68	POE 68	POE 68	POE 68	POE 68	POE 68
Charge Amount	120ml	120ml	120ml	120ml	120ml	120ml
Range of Roation	1000-6000rpm	1000-6000rpm	1000-6000rpm	1000-6000rpm	1000-6000rpm	1000-6000rpm
Speed Range	PWM/CAN/LIN	PWM/CAN/LIN	PWM/CAN/LIN	PWM/CAN/LIN	PWM/CAN/LIN	PWM/CAN/LIN
Rated Cooling Capacity	5600W（6000rpm）	5600W（6000rpm）	5600W（6000rpm）	5600W（6000rpm）	5600W（6000rpm）	5600W（6000rpm）
Rated Power Consumpiton	2545W（6000rpm）	2545W（6000rpm）	2545W（6000rpm）	2545W（6000rpm）	2545W（6000rpm）	2545W（6000rpm）
COP	2.2	2.2	2.2	2.2	2.2	2.2
Maximum Current	15A	15A	15A	10A	10A	10A
Weight	6.1KG	6.1KG	6.1KG	6.1KG	6.1KG	6.1KG
Test conditions: suction pressure 0.3MPa (A)/exhaust pressure 1.5MPa (A)/superheat degree 10 ℃/subcooling degree 5 ℃

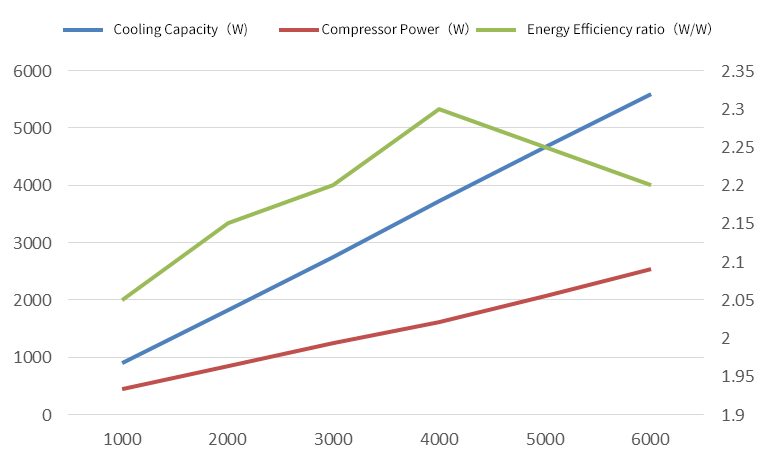

WS34A压缩机行标工况性能曲线图

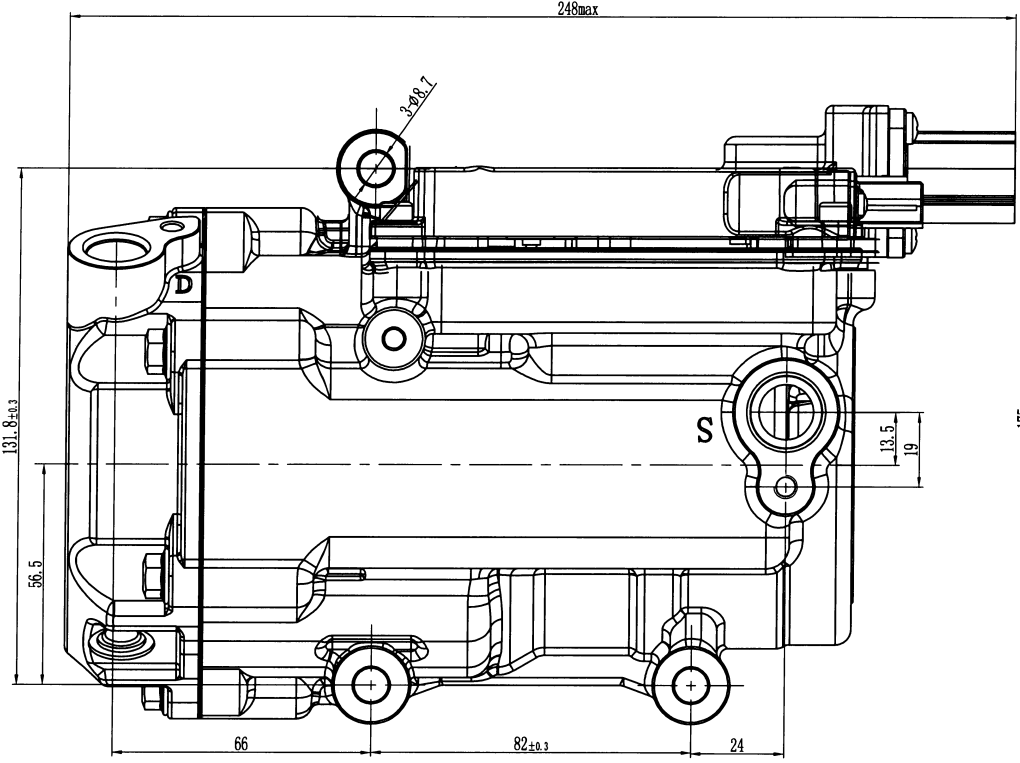

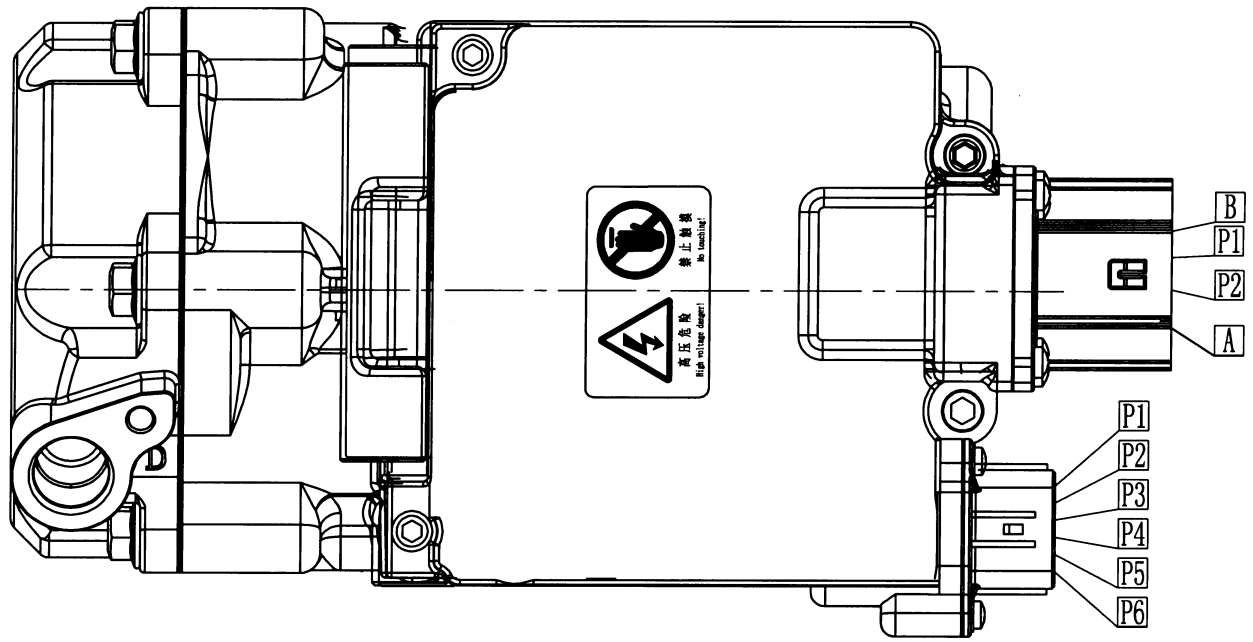

WS34A220-01（1）

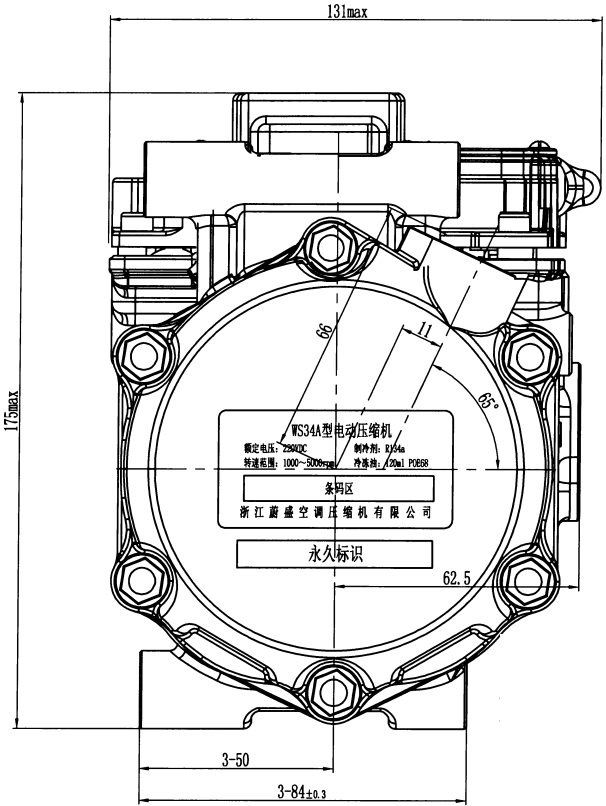

WS34A220-01（2）

WS34A220-01（3）

WS34A
